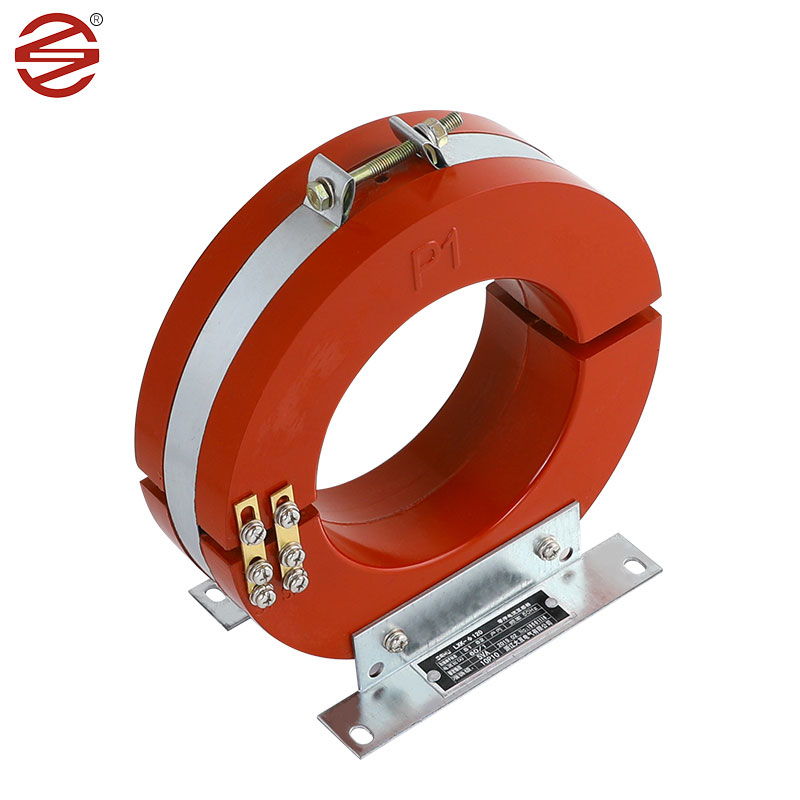

Current Transformer

As one of professional high quality Current Transformer manufacturer, you can rest assured to buy Current Transformer from Dahu Electric and we will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description

Cold-Rolled Silicon Steel Sheets: High-quality current transformer usually uses cold-rolled silicon steel sheets as its core. These materials are cold-rolled and have excellent magnetic properties, such as high permeability and low core loss, which makes them ideal for current transformers. By using cold rolled silicon steel sheet as the core material, the current transformer can achieve efficient energy transfer, thereby improving the efficiency of the system. Compared to other materials, cold-rolled silicon steel sheets have lower hysteresis loops and magnetization losses, which means less energy waste and lower power consumption.


Epoxy resin: Epoxy resin has excellent dielectric properties and mechanical strength, is the first choice of High-quality current transformer insulation material. Epoxy castings provide reliable insulation that protects internal components from electrical breakdown and environmental factors..


Copper : Copper conductors are typically used for windings in High-quality current transformer. These materials offer high electrical conductivity and mechanical durability, enabling efficient transmission of current signals while withstanding operational stresses.


Material (Epoxy Resin ): High-quality current transformer use enclosures made of epoxy resin, which has excellent insulation properties and can prevent current or voltage crossing for safe circuit operation. It is also resistant to high temperatures and corrosion, and has good sealing performance for waterproof and moisture-proof capabilities. Epoxy transformers are lighter and easier to install and maintain compared to oil-immersed transformers.


Product Details

The High-quality current transformer manufactured by DAHU ELECTRIC is an essential component in indoor switch cabinets, playing a crucial role in modern electrical systems. It not only measures current but also performs important tasks such as electrical energy monitoring and ensuring the smooth operation of protective relays in both single-phase and three-phase AC systems.


In addition to its functional capabilities, the High-quality current transformer from DAHU ELECTRIC is known for its commitment to quality and innovation. It incorporates advanced features, undergoes rigorous testing, and complies with industry standards, ensuring reliable performance.


Product Superiority

Our product plating of screws and bottom plate reaches 8um/min, which is more moisture-proof and rust-proof. The gloss is better.


LXK-Φ(80、120、140、160、200、240)type technical data 1:for residualprotection table 1

Transformation
ratio(A)

Relay type

Connection type of
relay coll

Relay scale value

Primary residual current of
relay acting (A)

Weight (kg)

60/1

DD-11/60

Series connection

15x1

2.4-4.5

4.5

30x1

Parallel connection

15x2

3-5

30x2

DD-1/60

Series connection

15x1

3-5

30x1

Parallel connection

15x2

3-6

30x2


LXK-Φ(80、120、140、160、200、240)type technical data 2:mating with microcomputer protection Table 2

Transformation ratio (A) Accuracy class Ratde output(VA)
60/1 5P10 1.0
75/1 1.5
100/1 2.5
150/1 2.5
200/1 3.75
300/1 7.5
150/1 2.0
200/1 2.5
300/1 5
400/1 10
500/1 12.5
600/1 15
