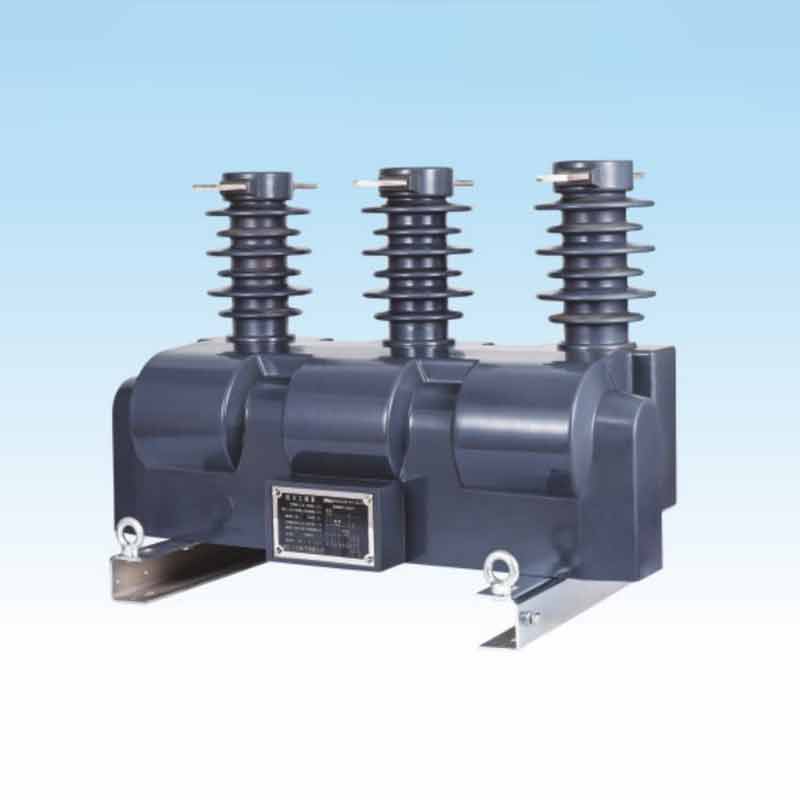

12kv Combined Instrument Transformer
  • 12kv Combined Instrument Transformer12kv Combined Instrument Transformer

12kv Combined Instrument Transformer

Dahu Electric is a professional 12kv Combined Instrument Transformer manufacturer and supplier in China. If you interested in 12kv Combined Instrument Transformer products, please contact with us. We follow the quality of rest assured that the price of conscience, dedicated service.

Send Inquiry

Product Description

Dahu Electric is a professional 12kv Combined Instrument Transformer manufacturer and supplier in China, you can rest assured to wholesale and customized 12kv Combined Instrument Transformer from our factory and we will offer you the best after-sale service and timely delivery.


Type description


Technical data

Parameter voltage

Type

Rated voltage ratio

(V)

Rated secondaryoutput

(VA)

Max.output

(VA)

Ratedinsulation

level (kV)

JLSZY3-6G

6000/100

0.2---3×15

3×200

7.2/32/60

JLSZY3-10G

10000/100

12/42/75


Parameter of current part

Rated primarycurrent(A)

Univariate ratio

Ratedsecondaryoutput(VA)

Thermal current

(Validvalue)(kA1s)

Rated dynamiccurrent

(Peak value)(kA)

0.2S

7.5-10-15

7.5

10

1.0

2.5

10-15-20

10

1.5

3.75

15-20-30

15

2.4

6.0

20-30-40

20、25

3.0

7.5

30-40-50

30

4.5

11

40-50-75

40

8

20

50-75-100

50

9

22.5

75-100-150

75

12

30

100-150-200

100

16

40

150-200-300

150

24

60

200-300-400

200、250

32

80

300-400-500

300

45

80

400-500-600

400

60

100

500-600-800

500-1000

80

100

600-800-1000

500-1000

80

100


Overall dimension drawing
