Products > Combined Instrument Transformer > Discharge Coil > Low Voltage Current Transformer
Products

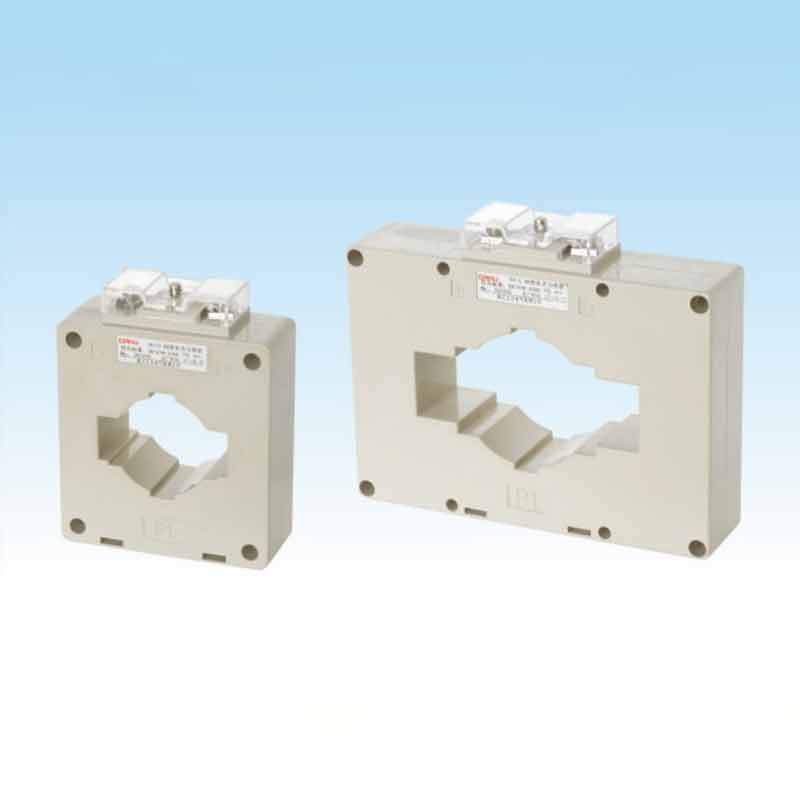

Low Voltage Current Transformer
Dahu Electric is a professional China Low Voltage Current Transformer manufacturer and supplier, if you are looking for the product with low price, consult us now!
Send Inquiry
Product Description
Find a huge selection of Low Voltage Current Transformer from China at Dahu Electric. Provide professional after-sales service and the right price, looking forward to cooperation.
Type description
Technical data
|
Type |
Rated Current ratio (A)
|
Rated secondary output(VA) |
Cross-core turn number |
|||
|
Level 1 |
Level 0.5 |
0.5S level |
Level 0.2 |
|||
|
BH-0.66 I (solid) (Figure 1) |
5/5 |
5 |
2.5 |
/ |
|
|
|
10/5 |
5 |
2.5 |
|
|
|
|
|
15/5 |
5 |
2.5 |
1 |
|
/ |
|
|
20/5 |
5 |
2.5 |
|
/ |
/ |
|
|
25/5 |
5 |
2.5 |
|
/ |
/ |
|
|
30/5 |
5 |
2.5 |
|
|
|
|
|
40/5 |
5 |
2.5 |
1 |
|
|
|
|
50/5 |
5 |
2.5 |
1 |
/ |
/ |
|
|
75/5 |
5 |
2.5 |
1 |
/ |
/ |
|
|
BH-0.6630 I (Figure 2) |
30/5 |
5 |
2.5 |
1 |
|
5 |
|
50/5 |
5 |
2.5 |
|
/ |
3 |
|
|
75/5 |
5 |
2.5 |
|
|
2 |
|
|
75/5 |
2.5 |
/ |
|
/ |
1 |
|
|
100/5 |
2.5 |
2.5 |
|
/ |
1 |
|
|
100/5 |
5 |
5 |
|
/ |
2 |
|
|
150/5 |
5 |
2.5 |
|
|
|
|
|
200/5 |
5 |
5 |
1 |
/ |
1 |
|
|
250/5 |
5 |
5 |
|
/ |
1 |
|
|
300/5 |
5 |
5 |
|
/ |
1 |
|
|
400/5 |
|
5 |
|
|
|
|
|
BH-0.6630IB (Figure 3) |
30/5 |
/ |
|
2.5 |
2.5 |
5 |
|
50/5 |
/ |
|
2.5 |
2.5 |
3 |
|
|
75/5 |
/ |
/ |
2.5 |
2.5 |
2 |
|
|
75/5 |
5 |
2.5 |
1 |
/ |
1 |
|
|
10015 |
5 |
2.5 |
|
|
|
|
|
100/5 |
/ |
|
5 |
5 |
2 |
|
|
Type |
Rated Current ratio (A)
|
Rated secondary output(VA) |
Cross-coreturn number |
|||
|
Level 1 |
Level 0.5 |
0.5S level |
Level 0.2 |
|||
|
BH-0.6630IB (Figure 3 ) |
150/5 |
/ |
/ |
2.5 |
2.5 |
|
|
200/5 |
/ |
1 |
5 |
5 |
1 |
|
|
250/5 |
/ |
1 |
5 |
5 |
1 |
|
|
300/5 |
/ |
|
5 |
5 |
1 |
|
|
BH-0.6640 I (Figure4 ) |
30/5 |
5 |
2.5 |
/ |
/ |
5 |
|
50/5 |
5 |
2.5 |
/ |
/ |
3 |
|
|
75/5 |
5 |
2.5 |
/ |
/ |
2 |
|
|
75/5 |
2.5 |
/ |
/ |
/ |
1 |
|
|
100/5 |
2.5 |
/ |
1 |
1 |
1 |
|
|
100/5 |
5 |
5 |
/ |
/ |
2 |
|
|
150/5 |
5 |
2.5 |
/ |
/ |
|
|
|
200/5 |
5 |
5 |
/ |
/ |
|
|
|
250/5 |
5 |
5 |
1 |
1 |
1 |
|
|
300/5 |
5 |
5 |
/ |
/ |
1 |
|
|
400/5 |
5 |
5 |
1 |
1 |
1 |
|
|
500/5 |
10 |
10 |
5 |
5 |
1 |
|
|
600/5 |
10 |
10 |
5 |
5 |
1 |
|
|
BH-0.6650 I (Figure5 ) |
150/5 |
2.5 |
/ |
/ |
/ |
|
|
200/5 |
5 |
2.5 |
1 |
1 |
1 |
|
|
250/5 |
5 |
5 |
/ |
/ |
1 |
|
|
300/5 |
5 |
5 |
/ |
/ |
1 |
|
|
400/5 |
5 |
5 |
/ |
/ |
|
|
|
500/5 |
10 |
10 |
5 |
5 |
1 |
|
|
600/5 |
10 |
10 |
5 |
5 |
|
|
|
750/5 |
10 |
10 |
10 |
10 |
1 |
|
|
800/5 |
10 |
10 |
10 |
10 |
|
|
|
1000/5 |
10 |
10 |
10 |
10 |
1 |
|
|
1200/5 |
20 |
20 |
20 |
20 |
|
|
|
BH-0.6660 I (Figure 6 ) |
200/5 |
5 |
/ |
/ |
/ |
1 |
|
250/5 |
5 |
5 |
/ |
/ |
1 |
|
|
300/5 |
5 |
5 |
1 |
1 |
1 |
|
|
400/5 |
5 |
5 |
/ |
/ |
1 |
|
|
500/5 |
10 |
10 |
5 |
5 |
1 |
|
|
600/5 |
10 |
10 |
5 |
5 |
|
|
|
750/5 |
10 |
10 |
10 |
10 |
1 |
|
|
800/5 |
10 |
10 |
10 |
10 |
1 |
|
|
1000/5 |
10 |
10 |
10 |
10 |
1 |
|
|
1200/5 |
20 |
20 |
20 |
20 |
|
|
|
1500/5 |
20 |
20 |
20 |
20 |
|
|
|
Type
|
Rated Current ratio (A)
|
Rated secondary output(VA) |
Cross-core turn number
|
|||
|
Level 1 |
Level 0.5 |
0.5S level |
Level 0.2 |
|||
|
BH-0.6680 I (Figure7 ) |
300/5 |
5 |
5 |
/ |
/ |
|
|
400/5 |
5 |
5 |
/ |
/ |
|
|
|
500/5 |
10 |
10 |
/ |
/ |
|
|
|
600/5 |
10 |
10 |
/ |
/ |
|
|
|
750/5 |
10 |
10 |
10 |
10 |
1 |
|
|
800/5 |
10 |
10 |
10 |
10 |
|
|
|
1000/5 |
10 |
10 |
10 |
10 |
|
|
|
1200/5 |
20 |
20 |
20 |
20 |
|
|
|
1500/5 |
20 |
20 |
20 |
20 |
|
|
|
2000/5 |
20 |
20 |
20 |
20 |
|
|
|
BH-0.66100 I (Figure8 ) |
600/5 |
10 |
10 |
/ |
/ |
|
|
750/5 |
10 |
10 |
10 |
10 |
|
|
|
800/5 |
10 |
10 |
10 |
10 |
|
|
|
1000/5 |
10 |
10 |
10 |
10 |
|
|
|
1200/5 |
20 |
20 |
20 |
20 |
|
|
|
1500/5 |
20 |
20 |
20 |
20 |
|
|
|
2000/5 |
20 |
20 |
20 |
20 |
|
|
|
2500/5 |
40 |
40 |
40 |
40 |
|
|
|
BH-0.66120 I (Figure 9 ) |
1000/5 |
10 |
10 |
10 |
10 |
|
|
1200/5 |
20 |
20 |
20 |
20 |
|
|
|
1500/5 |
20 |
20 |
20 |
20 |
1 |
|
|
2000/5 |
20 |
20 |
20 |
20 |
|
|
|
2500/5 |
40 |
40 |
40 |
40 |
|
|
|
3000/5 |
40 |
40 |
40 |
40 |
|
|
|
4000/5 |
40 |
40 |
40 |
40 |
1 |
|
Please provide the following information when placing an order
1 Product model and window width;
2 Rated current ratio;
3 Rated output and corresponding accuracy class;e.g.:when ordering the transformer BH-0.66 I type.Window width is 30mm,rated current ratio is 200/5A,rated output is 5VA, accuracy class is 0.5.Ordering code is:BH-0.66301200/5A 1 turn 5VA class 0.5.
4 Please negotiate with the manufacturer if there is any special requirement.
Overall dimension drawing
