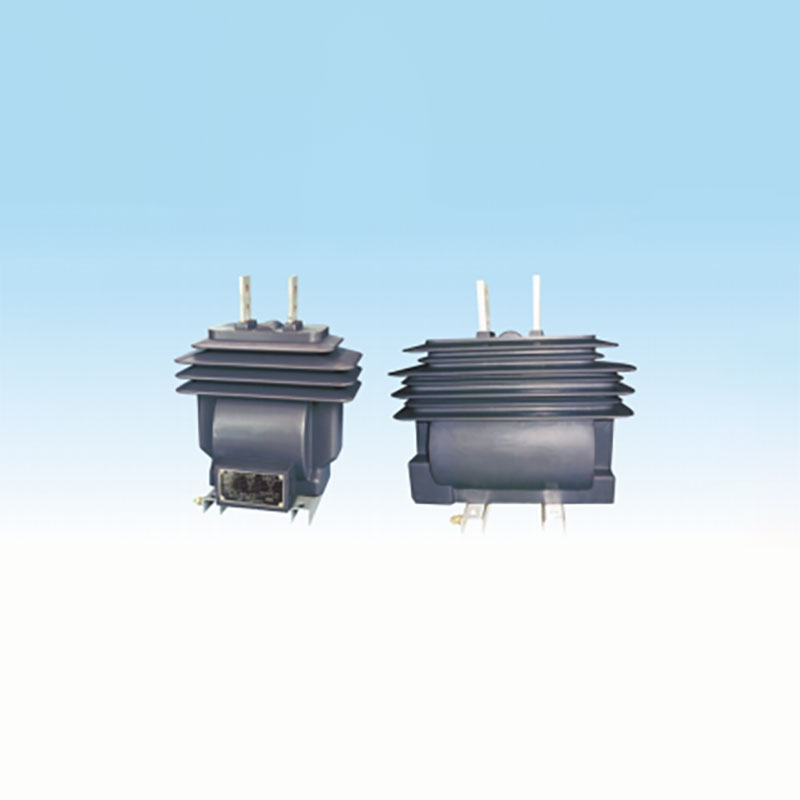

11 kV Outdoor Current Transformer
  • 11 kV Outdoor Current Transformer11 kV Outdoor Current Transformer

11 kV Outdoor Current Transformer

High quality 11 kV Outdoor Current Transformer is offered by China manufacturer Dahu Electric. Buy 11 kV Outdoor Current Transformer which is of high quality directly with low price.

Send Inquiry

Product Description

Cold-rolled silicon steel sheet :11 kV outdoor current transformer often uses cold-rolled silicon steel sheet as its core due to its excellent magnetic properties. These materials exhibit high permeability and low core loss, making them ideal for efficient energy transfer. They have lower hysteresis loops and magnetization losses compared to other options, resulting in less energy waste and lower power consumption.


Epoxy resin: Epoxy resin has excellent dielectric properties and mechanical strength, is the first choice of 11 kV outdoor current transformer insulation material. Epoxy castings provide reliable insulation that protects internal components from electrical breakdown and environmental factors.


Copper : Copper conductors are typically used for windings in 11 kV outdoor current transformer. These materials offer high electrical conductivity and mechanical durability, enabling efficient transmission of current signals while withstanding operational stresses.

Material (Epoxy Resin ): 11 kV outdoor current transformer use enclosures made of epoxy resin, which has excellent insulation properties and can prevent current or voltage crossing for safe circuit operation. It is also resistant to high temperatures and corrosion, and has good sealing performance for waterproof and moisture-proof capabilities. Epoxy transformers are lighter and easier to install and maintain compared to oil-immersed transformers.


Product Details

The 11 kV outdoor current transformer manufactured by DAHU ELECTRIC is an essential component in indoor switch cabinets, playing a crucial role in modern electrical systems. It not only measures current but also performs important tasks such as electrical energy monitoring and ensuring the smooth operation of protective relays in both single-phase and three-phase AC systems.


In addition to its functional capabilities, the 11 kV outdoor current transformer from DAHU ELECTRIC is known for its commitment to quality and innovation. It incorporates advanced features, undergoes rigorous testing, and complies with industry standards, ensuring reliable performance.


Product Superiority

Our product plating of screws and bottom plate reaches 8um/min, which is more moisture-proof and rust-proof. The gloss is better.

1. Application Metering
2 Installation outdoor
3. Construction Dry type Epoxy Resin Cast
4 Insulation Cast Resin
5. Number of Phase Single
6. Rated Frequency 50 Hz
7. System Primary Rated Voltage 11 kV Phase to Phase
8. Maximum System Voltage 12 kV Phase to Phase
9. System Earthing Effectively earthed
10. Basic Insulation Level (1.2/50 μ sec. 75 KV
11. Power Frequency Withstand Voltage (1 min.50
Hz)
28 KV
12.
13.
Ratio:
11kV Feeder
Primary
10-20/5A
Single Winding
14. Secondary Single Winding
15. Accuracy Class 0.2/0.25 for Measurement
16. Burden
a)for Measurement
7.5-10 VA
17. Short Time Current Rating Minimum 10 kA for 1 Sec
18. Extended Curent Rating 120%of Rated Current
19. Over Current Rating <10A
20. Creepage Distance 25 mm/KV(minimum
21. Standard Design,Manufacture,Testing,Installation
and Performance shall be in accordance to
the latest editions of IBC 61869-1 &IEC
61869-2
