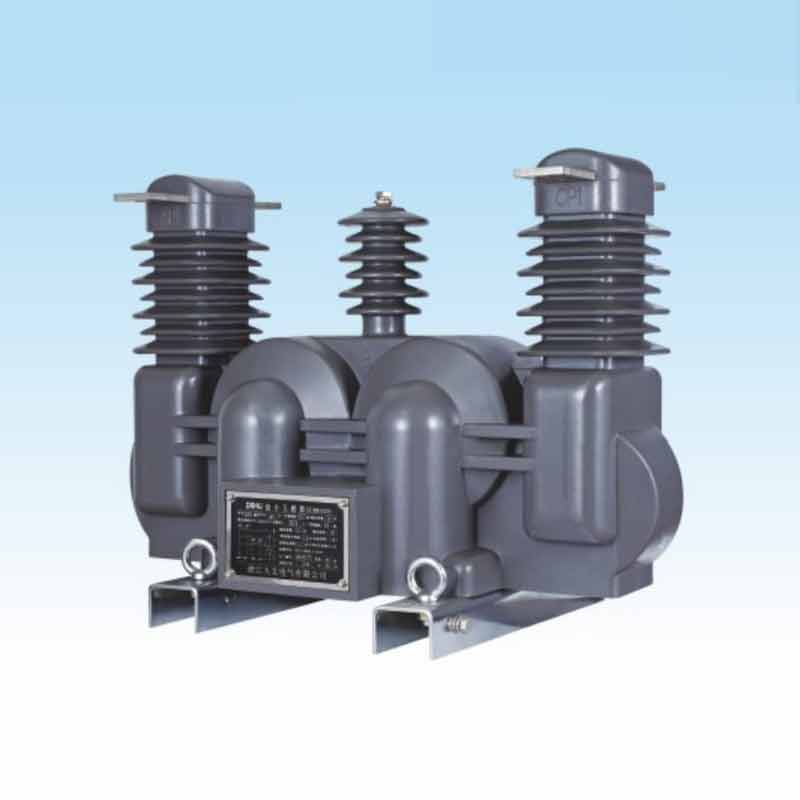

10kv Combined Instrument Transformer
  • 10kv Combined Instrument Transformer10kv Combined Instrument Transformer

10kv Combined Instrument Transformer

Dahu Electric is one of the famous China 10kv Combined Instrument Transformer manufacturer and supplier. Our factory specializes in manufacturing of 10kv Combined Instrument Transformer. Welcome to buy 10kv Combined Instrument Transformer from us. Every request from customers is being replied within 24 hours.

Send Inquiry

Product Description

Welcome to wholesale or customized 10kv Combined Instrument Transformer from our factory at any time. We will provide you with factory discount prices for our products. Dahu Electric is 10kv Combined Instrument Transformer manufacturer and supplier in China.


Type description


Technical data

Parameter voltage

Type

Rated voltage ratio

(V)

Accuracy class and ratedsecondaryoutput

(VA)

Max.output

(VA)

Ratedinsulationlevel

(kV)

JLSZV2-6W

6000/100

0.2--2×20

2×400

7.2/32/60

JLSZV2-10W

10000/100

12/42/75


Parameter of current part

Rated primary current

(A)

Single transformation

ratio

Accuracy classand ratedsecondaryoutput(VA)

1s thermalcurrent(kA)

Rated dynamiccurrent

(kA)

0.2S

7.5-10-15

7.5

10

1.0

2.5

10-15-20

10

1.5

3.75

15-20-30

15

2.4

6.0

20-30-40

20、25

3.0

7.5

30-40-50

30

4.5

11

40-50-75

40

6.5

16.5

50-75-100

50

9

22.5

75-100-150

75

12

30

100-150-200

100

16

40

150-200-300

150

24

60

200-300-400

200、250

32

80

300-400-500

300

45

400-500-600

400

60

100

500-600-800

500-1000

80

600-800-1000


Overall dimension drawing
