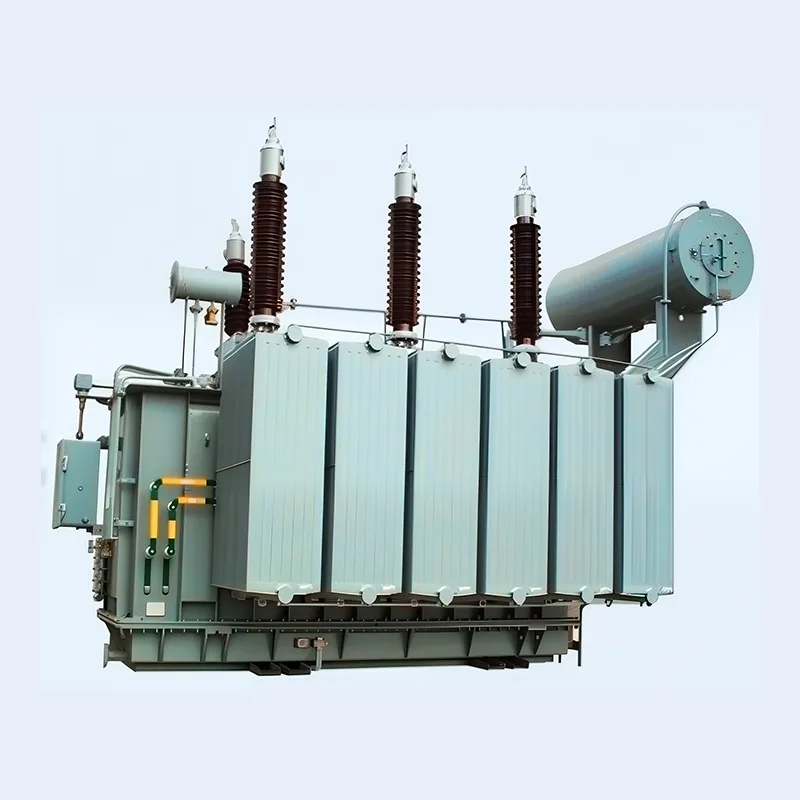

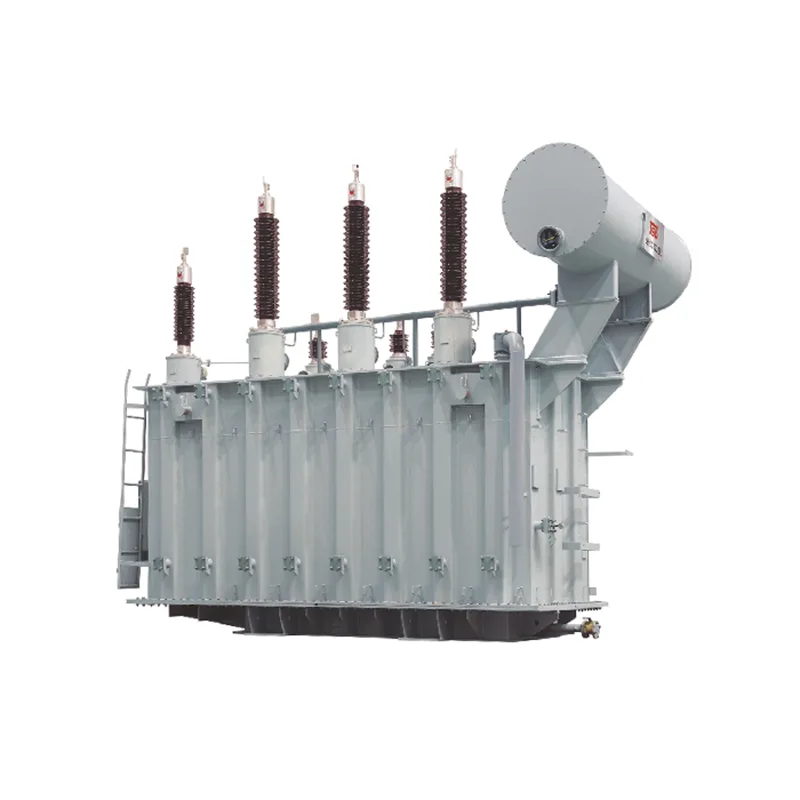

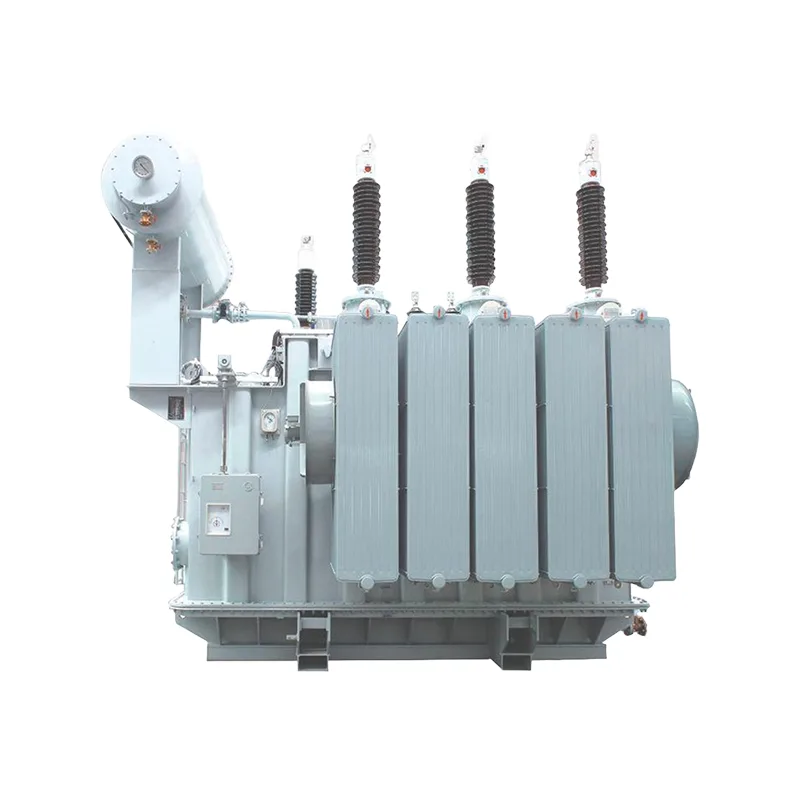

110KV Oil-Immersed Power Transformer

Dahu Electric is a professional manufacturer and supplier of 110KV Oil-Immersed Power Transformers in China. This product is highly stable, cost-effective and reliable in performance, and is suitable for power plants, substations, as well as large industrial, mining and petrochemical enterprises.

Send Inquiry

Product Description

Product Details

1. High pressure transformer, use Japanese Toshiba analysis software and our company unique calculation and validation procedures. In order to ensure the performance of product, we design and test to the 110KV Oil-Immersed Power Transformer core, coil, the body of machine,lead wire, oil tank and other parts of machine.

2. Our product SSZ11-40000/110 has passed the short-circuit bearing capacity and all routine type tests of the National Transformer Quality Supervision and Inspection Center.

3. This product has the characteristics of stability, economy, reliability and environmental protection, and is suitable for power plants, substations and large industrial, mining and petrochemical enterprises.

Product Advantages

1、Fully sealed and insulated structure can guarantee the security of person.

2、Economic and efficient to reduce network loss and operation cost.

3、110KV Oil-Immersed Power Transformer is not only used for ring network but also terminal.

4、Low loss, low noise, superior performance.

5、Low temperature, overload ability.

6、Transformer adopts special structure and its outstanding advantages is high quality.

Technical Parameter

6300kVA~120000kVA two-winding transformer with NVTC

Rated capacity (kVA)	Rated Voltage and tapping range			Vector group	No-loa bad curent (%)	Impedance voltage (%)	No-load losses (kW)	On load losses (kW)
Rated capacity (kVA)	High vokage	Tapping range	Low voltege	Vector group	No-loa bad curent (%)	Impedance voltage (%)	No-load losses (kW)	On load losses (kW)
6300	110,121	*2x2.5%	6.3,6.6, 10.5,11	YNd11	0.77	10.5	9.3	36
8000					0.77		11.2	45
10000					0.72		13.2	53
12500					0.72		15.6	63
16000					0.67		18.8	77
20000					0.67		22	93
25000					0.62		26	110
31500					0.6		30.8	133
40000					0.56		36.8	156
50000					0.52		44	194
63000					0.48		52	234
75000					0.42		59	278
90000					0.38	12-14	68	320
120000					0.34	12-14	84.8	397

6300kVA~100000kVA three-winding transformer with NVTC

Rated capacity (kVA)	Rated Voltage and tapping range			Vector grOA	No-lond curret (%)	Impedance voltage (%)		No-load losses (kW)	On load losses (kW)
Rated capacity (kVA)	High voltage	Medium voltage	Low voltage	Vector grOA	No-lond curret (%)	Step up	Step down	No-load losses (kW)	On load losses (kW)
6300	110=2* 2.5%,121 *2x2.5%	35,38.5	6.3,6.6, 10.5,11	YNyn0d11	0.82	HV-MV: 17.5-18.5 HV-LV:10.5 MV~LV:6.5	HV-MV:10.5 HV-LV: 17.5-18.5 MV-LV:6.5	11.2	47.0
8000					0.78			13.2	56.0
10000					0.74			15.8	66.0
12500					0.70			18.4	78.0
16000					0.66			22.4	95.0
20000					0.65			26.4	112.0
25000					0.6			30.8	133.0
31500					0.6			36.8	157.0
40000					0.55			43.6	189.0
50000					0.55			52.0	225.0
63000					0.50			61.6	270.0
75000					0.50			70.2	307.7
80000					0.50			73.7	323.0
100000					0.50			87.1	381.8

6300kVA~100000kVA two-winding transformer with OLTC

Rated capacity (kVA)	Rated Volitage and tapping range			Vector group	No-oad curent (%)	Impedance votage (%)	No-losd losses (kW)		On load losses (kW)
	Highveitage	Tapping range	Low voltag0
6300	110	*8x 1.25%	6.3,6.6, 10.5.11	YNd11	0.8	10.5	10		36
8000					0.8		12		45
10000					0.74		14.2		53
12500					0.74		16.8		63
16000					0.69		20.2		77
20000					0.69		24		93
25000					0.64		28.4		110
31500					0.64		33.8		133
40000					0.58		40.4		156
50000					0.58		47.8		194
63000					0.52		56.8		234

75000
					0.63			64.7	266.7
80000					0.63			67.9	297.9
100000					0.63			80.3	330.9

6300kVA~100000kVA three-winding transformer with OLTC

Rated capacity (kVA)	Rated Voltage and tapping range			Vector grou.p	No-load current (%)	Impedance voltage (%)	No-load losses (kW)	On load losses (kW)
Rated capacity (kVA)	Highvcitage	Medum voltage	Low valtage	Vector grou.p	No-load current (%)	Impedance voltage (%)	No-load losses (kW)	On load losses (kW)
6300	110±8x 12.5%	35,37.38.5	6.3,6.6, 10.5.11	YNyn0d11	0.95	HV-MV:10.5 HV-LV:17.5~18.5 MV-LV:6.5	12.0	47
8000					0.95		14.4	56
10000					0.89		17.1	66
12500					0.89		20.2	78
16000					0.84		24.2	95
20000					0.84		28.6	112
25000					0.78		33.8	133
31500					0.78		40.2	157
40000					0.73		48.2	189
50000					0.73		56.9	225
63000					0.67		67.7	270
75000					0.84		77.2	307.7
80000					0.84		81.0	323
100000					0.84		95.7	381.8
