10kv Voltage Transformer
  • 10kv Voltage Transformer10kv Voltage Transformer
  • 10kv Voltage Transformer10kv Voltage Transformer
  • 10kv Voltage Transformer10kv Voltage Transformer
  • 10kv Voltage Transformer10kv Voltage Transformer
  • 10kv Voltage Transformer10kv Voltage Transformer
  • 10kv Voltage Transformer10kv Voltage Transformer

10kv Voltage Transformer

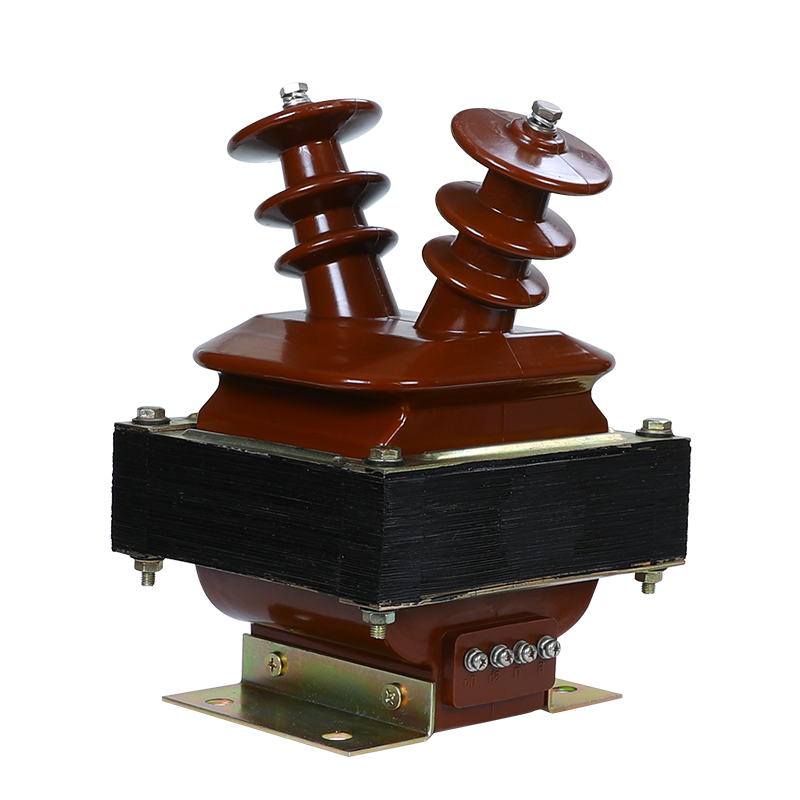

The 10kV voltage transformer manufactured by DAHU ELECTRIC plays a key role in the indoor switch cabinet, providing a powerful solution for current measurement, electrical energy monitoring and protective relays in single-phase and three-phase AC systems. These systems operate seamlessly at frequencies of 50Hz or 60Hz, meeting a wide range of electrical requirements for equipment voltages up to 12kV.

Send Inquiry

Product Description

Cold-Rolled Silicon Steel Sheets: 10kV voltage transformer usually uses cold-rolled silicon steel sheets as its core. These materials are cold-rolled and have excellent magnetic properties, such as high permeability and low core loss, which makes them ideal for current transformers. By using cold rolled silicon steel sheet as the core material, the current transformer can achieve efficient energy transfer, thereby improving the efficiency of the system. Compared to other materials, cold-rolled silicon steel sheets have lower hysteresis loops and magnetization losses, which means less energy waste and lower power consumption.

Epoxy resin: Epoxy resin has excellent dielectric properties and mechanical strength, is the first choice of 10kV voltage transformer insulation material. Epoxy castings provide reliable insulation that protects internal components from electrical breakdown and environmental factors..

Copper : Copper conductors are typically used for windings in 10kV voltage transformer. These materials offer high electrical conductivity and mechanical durability, enabling efficient transmission of current signals while withstanding operational stresses.

Material (Epoxy Resin ): 10kV voltage transformer are housed in enclosures made of epoxy resin. Epoxy resin has excellent insulation properties, can effectively prevent current or voltage crossing, to ensure the safe operation of the circuit.

It has high temperature resistance and can adapt to the working requirements in high temperature environment.

It has good corrosion resistance, can resist the erosion of some chemical substances, and extend the service life of the transformer.

It has good sealing performance, so the epoxy transformer usually has good waterproof and moisture-proof performance and is suitable for use in humid environments.

Compared to traditional oil-immersed transformers, epoxy transformers generally have a lighter weight and are easy to install and maintain.

Product Superiority

Our product plating of screws and bottom plate reaches 8um/min, which is more moisture-proof and rust-proof. The gloss is better.

1. Application Metering
2. Installation Indoor.
3. Insulation Cast Resin
4. Type Voltage Induction
5. Construction Dry type Epoxy Resin Cast
6. Number of Phase Singe Phase(1 set=3 Nos.)
7. Frequency 50 Hz
8. Mounting Mounted Supporting on Gantry Structure Mounted
9. System Primary Rated Voltage 11 kV(Phase to Phase)
10. System Primary Maximum Voltage 12 kV (Phase to Phase)
11. System Earthlings Effectively earthed
12. Basic Insulation (Impulse withstand

75 kV
13. Power Frequency Withstand Voltage 28 kV
14. The neutral end of primary winding,for

direct connection to ground
Insulated to withstand the 10 kV

low frequency test.
15. Type of Secondary Winding Single Winding
16. Transformation Ratio 11 kV//3/0.11 kV/3
17. Creepage Distance 25mm/kV(minimum)
18. Rated Secondary Burden 7.5 to 10 VA
19. Voltage limit factor 1.2 continuous and 1.5 for 30 Seconds
20. Class of Accuracy 0.2 for metering.
21. Standard Design, Manufacture, Testing, Installation and

Performance shall be in accordance to the latest

editions of IEC 61869-1 & IEC 61869-3.

Outline and mounting dimensions
