Products > Outdoor Vacuum Circuit Breaker Special Metering Box > 10Kv outdoor Vacuum Circuit Breaker Special Metering Box
Products

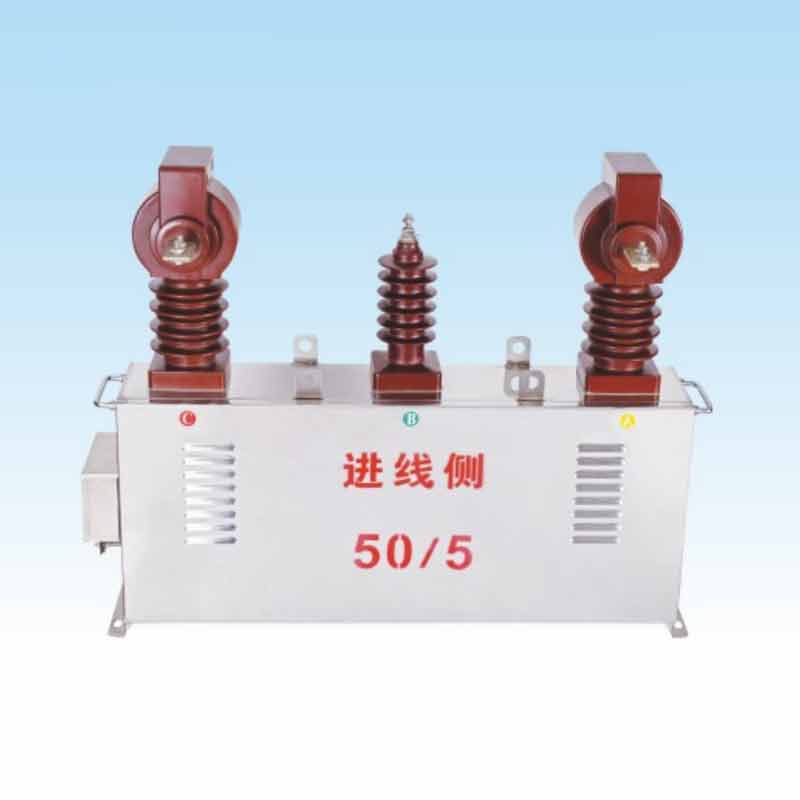

10Kv outdoor Vacuum Circuit Breaker Special Metering Box
Dahu Electric warmly welcome you to wholesale 10Kv outdoor Vacuum Circuit Breaker Special Metering Box from our factory. Our products are CE certified and currently have a large amount of factory inventory. We will provide you with good service and factory discounted prices.
Send Inquiry
Product Description
Dahu Electric is 10Kv outdoor Vacuum Circuit Breaker Special Metering Box manufacturer and supplier in China who can wholesale 10Kv outdoor Vacuum Circuit Breaker Special Metering Box, we can provide professional service and better price for you.
Type description
Technical data
Parameter voltage
|
Rated voltage ratio (V) |
Rated secondaryoutput (VA) |
Max.output (VA) |
Ratedinsulationlevel (kV) |
|
10000/100 |
0.2---2×15 |
2×200 |
12/42/75 |
Parameter of current part
|
Rated primarycurrent(A) |
Univariate ratio |
Ratedsecondaryoutput(VA) |
Thermal current (Validvalue)(kA1s) |
Rated dynamiccurrent (Peak value)(kA) |
|
0.2S |
||||
|
7.5-15 |
7.5 |
10 |
1.0 |
2.5 |
|
10-20 |
10 |
1.5 |
3.75 |
|
|
15-30 |
15 |
2.4 |
6.0 |
|
|
20-40 |
20、25 |
3.0 |
7.5 |
|
|
25-50 |
30 |
4.5 |
11 |
|
|
40-80 |
40 |
8 |
20 |
|
|
50-100 |
50 |
9 |
22.5 |
|
|
75-150 |
75 |
12 |
30 |
|
|
100-200 |
100 |
16 |
40 |
|
|
150-300 |
150 |
24 |
60 |
|
|
200-400 |
200、250 |
32 |
80 |
|
|
300-600 |
300 |
45 |
80 |
|
|
400-500 |
400 |
60 |
100 |
|
|
500-600 |
500、600 |
80 |
100 |
Overall dimension drawing
